CC-00017,which is morpholine synthesis catalysts uses the double transition metal as the main activity ,with the modified alumina as the carrier,added special promotor. It has been sucessfully used in many industrial devices. The catalyst has lots of advantages,such as high activity, good selectivity,flexible performance ,good stability.Service life of the catalyst can reach more than 28 months. And it takes less than 0.5kg catalyst to produce one-ton morpholine.
Physical and chemical properties
Item | Index |

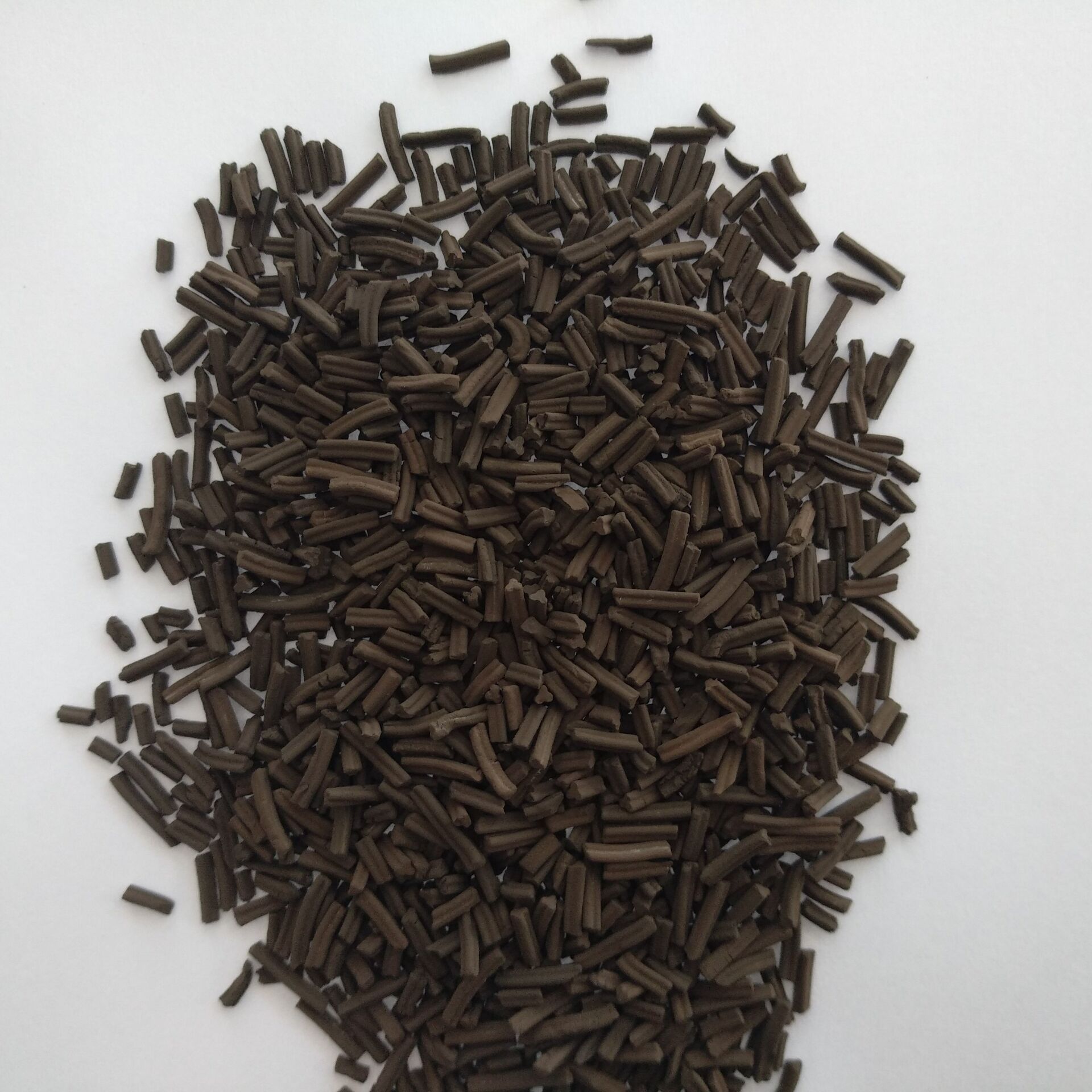

Appearance | Brown-black trilobe extrudates |
Particle size (mm) | ∮(2-3)×(3-15) |
Crushing strength N/cm | 100(min) |
Bulk density kg/L | 0.7-0.9 |
Content of active components % | 20-30 |
Reference operating conditions
Process conditon
| Pressure MPa | Temperature ，℃ | Space velocity hr-1 |
1.3-2.0 |
Beginning entrance : 207-210 | 0.09 - 0.13 | |
Raw materials | Diethylene glycol, ammonia hydrogen without any sulfur or sulfide | ||
Diethylene glycol consumption | 1.55(max), ensuring the recovery rate of morpholine no less than 97% in the process of seperation | ||
Ammonia consumption | 0.32(max), ensuring system sealed. Off-gas without ammonia, comsumption less with the ammonia recycled. | ||
Hydrogen consumption | 150NM3/ton | ||
