Hydrotreating catalyst

Important Notice

This product is a chemical product/pharmaceutical intermediate. It is not a drug, an active pharmaceutical ingredient (API), or a pharmaceutical-grade material. It has not been granted a drug approval number or a Chemical Drug Substance Approval Notice, has not passed drug-related review and approval, and is not manufactured, tested, or released in accordance with pharmaceutical GMP.
This product is intended solely for non-clinical research, process development, quality studies, further chemical processing, or chemical synthesis. It must not be used in drug-product manufacturing, clinical trials, clinical diagnosis, or administration to humans or animals, or be sold, used as an input, submitted for regulatory filing, or released as an API or pharmaceutical material.
The purchaser must not use this product, or supply it to another party, for personal consumption, sports or fitness, weight loss, health supplements, food, or animal feed.

Other grades of this product :

characteristics:

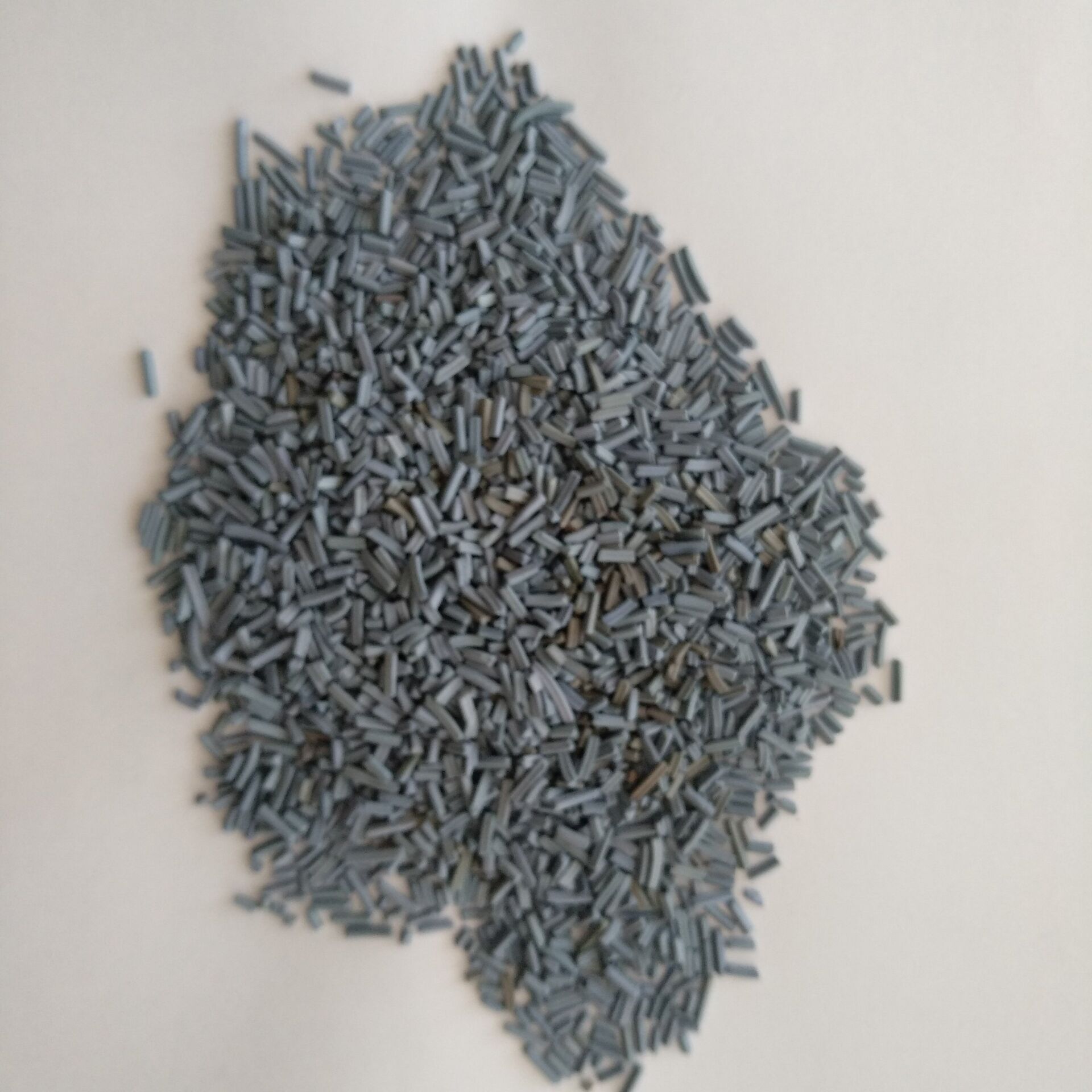

It takes titanium-promoted alumina as carrier , carrying such active components as molybdenum, nickel and cobalt, featuring even distribution of active components, easy sulfuration, high hydrogenation activity, outstanding compression resistance and abrasive resistance, convenient loading and unloading.
Application：It is mainly used in secondary pyrolysis gasoline hydrotreating process.
Physical-chemical properties:

item	target	item	target
Appearance	Trilope extrudates	surface area ,m2/g	min140
particle,mm	1.4-1.6*2-15	MoO3,wt%	min13.0
crushing strength, N/cm	min120	CoO,wt%	min2.3
Bulk density,kg/L	0.70	NiO,wt%	min1.3
Pore volume, ml/g	min0.3

Reference operating conditions:

Process parameters	Hydrogen partial pressure, Mpa	inlet temperature of reactor,℃	space velocity, hr-1	Hydrogen oil volume ratio, V/V
Process parameters	4.5	220	2.0-3.0	300
Raw oil	Diene number max3.0gI2/100g
Generated oil	Diene number ≤0.5g Br2/100g

Packing: iron drums innerlining
