Ammonia decomposition catalyst
Commodity description: CC-00074 catalyst is dedicated to ammonia decomposition.
1 Commodity description
CC-00074 catalyst is a new type of ammonia decomposition hydrogen production catalyst,based on the nickel as the active component with alumina as the main carrier and special additives.It is mainly used for ammonia decomposition hydrogen production plant.It has good stability, good activity, and high strengh..
The product has repeatedly exported to North America, the Middle East, Southeast Asia and other countries.
2 The physical and chemical properties
Item | Index |

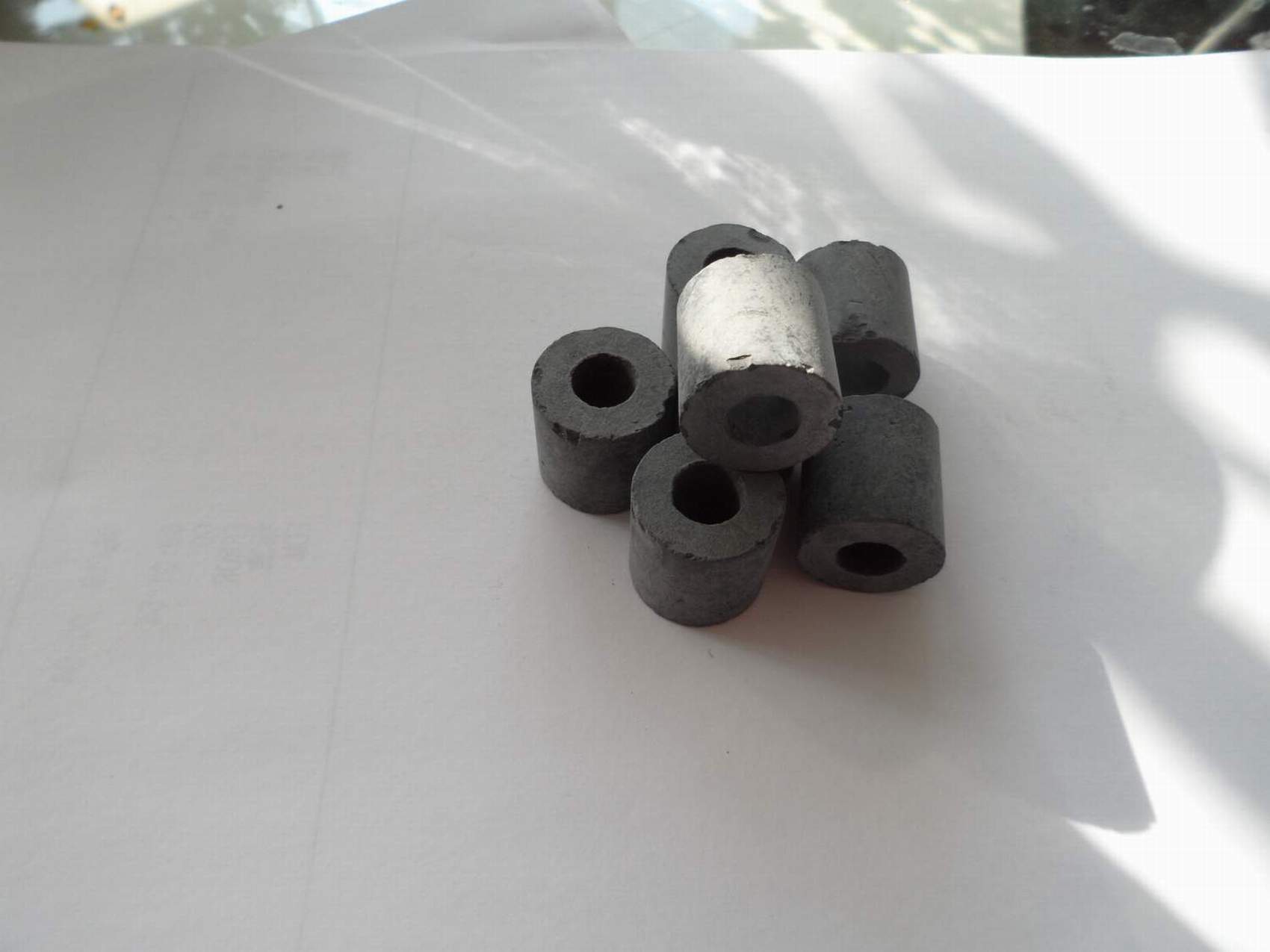

appearance and size | slate gray rasching ring |
geometric dimension (inner diameter ×outer diameter ×height) | 19 × 19 × 9 （mm） |
bulk density，Kg/L | 1.10~1.20 |
chemical composition， ( % ) | NiO ≥ 14.00 balance：AI2O3＋special additives |
Burning loss weight | ≤20 |
crushing strength N/ particle | ≥ 400 |
the percentage of low-intensity particles(the percentage of below 180N/particle) | ≤5.0% |
heat-resistance indicator | non-adhesion and fracture in two hours at 1300℃ |
heat-resistance | long-term operation under 1200℃, non-melting,non-shrink,non-deformation, good structure stability and high strength. |
3 reference operating conditions：
Item | Index |
pressure | 0.01Mpa - 0.10MPa |
temperature | 750℃-850℃ |
ammonia space velocity | 350 hr-1 |
ammonia decomposition rate | 99.99％（min） |
4 Packaging and storage
Packaging according to customer requirements.Packaging material with the name, model, weight (kg), the name of the production plant and other obvious signs.Transportation should be moisture, anti crash, prohibit rolling handling. Products should be stored in a dry warehouse.
