Catalyst CC-00083 was researched and developed by FRIPP. It is a kind of hydrocracking catalyst possessing strong N-resistant property. Catalyst CC-00083 adopts molecular sieve US-SSY and amorphous Si-Al as cracking components, and adopts W-Ni as hydrogenation components so that it possesses higher activity and higher selectivity of mid-distillate.
The most important characteristic of catalyst CC-00083 is the better N-resistant property. It is able to contain the higher activity and stability under the condition of the content of nitrogen in refining oil lower than 20～50ppm. Even under the condition of the content of nitrogen in refining oil between 80～100ppm, it also can stably run and be used in regeneration. Catalyst CC-00083 was first used in the hydrocracking device of Liaoyang Petrochemical Company in April 1998, and the running result of catalyst CC-00083 in industrial application is fairly good.
　

(I)、Characteristics of the catalyst

chemical composition	WO3-NiO-Al2O3

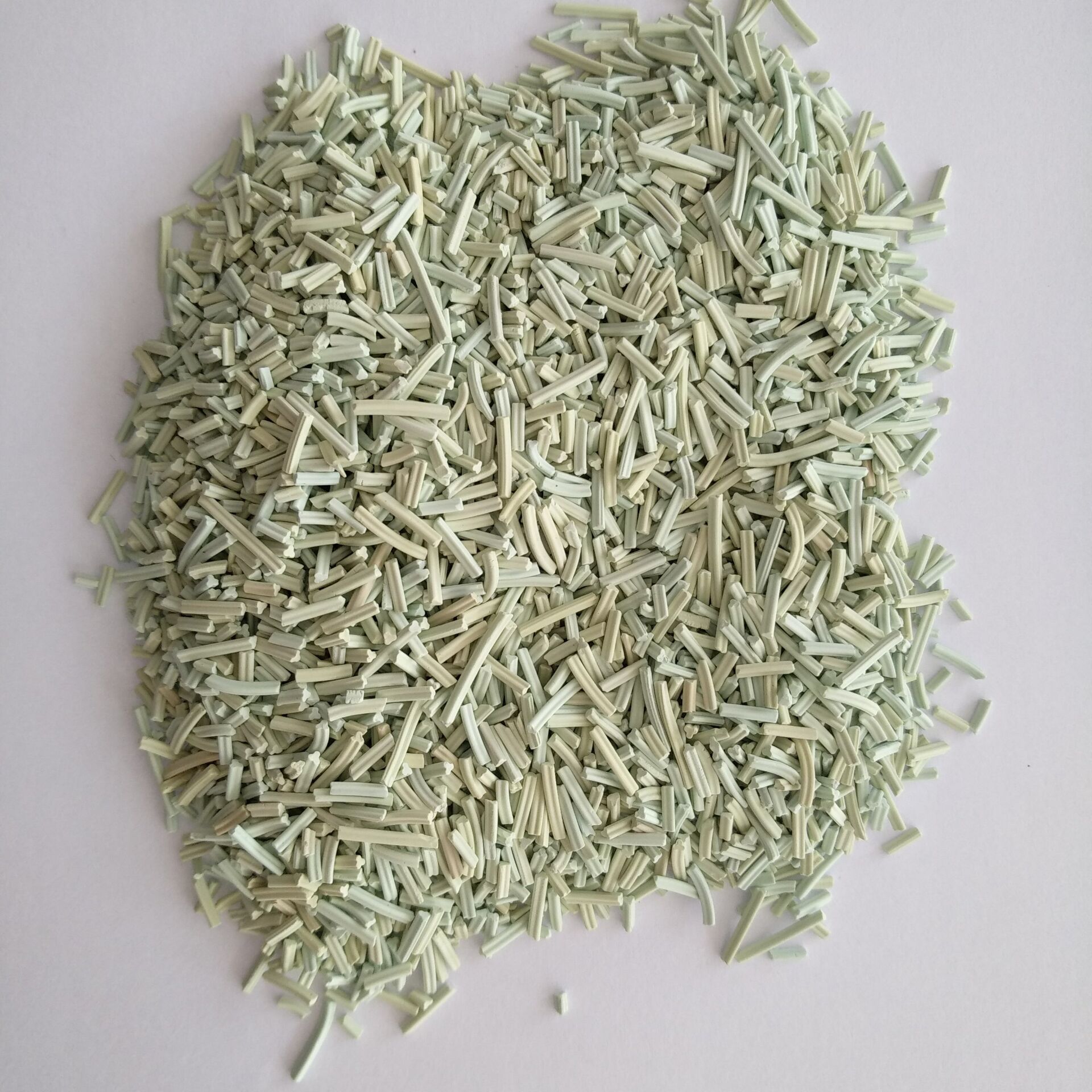

shape	trilobite
dimension mm	Φ1.5～1.7×3～8
bulk density kg/l	0.83～0.93
specific surface area m2/g	≥250
crushing strength N/mm	≥18
pore volume ml/g	≥0.28
abrasion W%	＜1.5

　
(II)、Activity index

technology parameters	pressure MPa	temperature ℃	volume space velocity h-1	hydrogen oil volume ratio
technology parameters	14.7	370	1.0	1200:1
feedstock	Saudi Arabia light oil、Iran mixed oil
product	the yield of diesel 16.33%; cetane number 0.17
