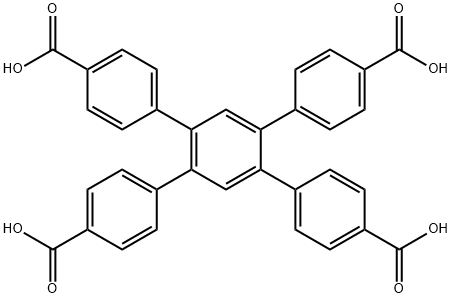

1,2,4,5-Tetrakis(4-carboxyphenyl)benzene

CAS No.：1078153-58-8

Important Notice

This product is a chemical product/pharmaceutical intermediate. It is not a drug, an active pharmaceutical ingredient (API), or a pharmaceutical-grade material. It has not been granted a drug approval number or a Chemical Drug Substance Approval Notice, has not passed drug-related review and approval, and is not manufactured, tested, or released in accordance with pharmaceutical GMP.
This product is intended solely for non-clinical research, process development, quality studies, further chemical processing, or chemical synthesis. It must not be used in drug-product manufacturing, clinical trials, clinical diagnosis, or administration to humans or animals, or be sold, used as an input, submitted for regulatory filing, or released as an API or pharmaceutical material.
The purchaser must not use this product, or supply it to another party, for personal consumption, sports or fitness, weight loss, health supplements, food, or animal feed.

View the full Disclaimer

Other grades of this product :

1,2,4,5-Tetrakis(4-carboxyphenyl)benzene Basic information

Product Name:	1,2,4,5-Tetrakis(4-carboxyphenyl)benzene
Synonyms:	H4TCPB;1,2,4,5-Tetrakis(4-carboxyphenyl)benzene contains up to 6 wt. % water, >=98%;1,2,4,5-Tetrakis(4-carboxyphenyl)benzene;4',5'-Bis(4-carboxyphenyl)-[1,1':2',1''-terphenyl]-4,4''-dicarboxylic acid;4,4',4'',4'''-benzene-1,2,4,5-tetrayl-tetrabenzoic acid;[1,1':2',1''-Terphenyl]-4,4''-dicarboxylic acid, 4',5'-bis(4-carboxyphenyl)-;1,2,4,5-Tetrakis(4-carboxyphenyl)benzene (This product is unavailable in the U.S.);DK7240
CAS:	1078153-58-8
MF:	C34H22O8
MW:	558.53
EINECS:
Product Categories:
Mol File:	1078153-58-8.mol

1,2,4,5-Tetrakis(4-carboxyphenyl)benzene Chemical Properties

Boiling point	792.8±60.0 °C(Predicted)
density	1.393±0.06 g/cm3(Predicted)
Fp	85 °C
pka	3.24±0.10(Predicted)

Safety Information

MSDS Information

1,2,4,5-Tetrakis(4-carboxyphenyl)benzene Usage And Synthesis

Uses	Selected Applications of MOFs in Sustainable Energy Technologies
General Description	This product has been enhanced for energy efficiency.
Synthesis	a) 100 ml of p-tolylmagnesium bromide (1M in THF, 100 mmol) was added under nitrogen to a flask containing 5g of (9.07 mmol). The mixture was stirred at nitrogen to a flask containing 5g of (9.07 mmol). The mixture was stirred at room temperature for 15 hours (gray suspension). The reaction was poured on ice then 50 ml of 6M HCl was added. The mixture was extracted with THF (3X 200ml). The organics were combined and the solvent was removed via rotary evaporation. The solid was then washed with hexanes and cold acetone. Isolated yield: 2.75g, 70% based on hexabromobenzene. yield: 2.75g, 70% 1H NMR (CDCl3): δ 2.32 (s, 12H), 7.04 (d, 8H), 7.12 (d, 8H), 7.45 (s, 2H). 13C NMR (CDCl3): δ 128.9, 130.0, 133.3, 136.4, 138.4, 139.5 ppm.(b) An amount of 2g from (a) was placed in a 100 ml teflon lined vessel. An amount of 24 ml of water and 6 ml of HNO3 were then added. The vessel was sealed and heated at 180 °C for 24 hrs. The resulting solid was collected by filtration and washed with THF/CHCl3 (7:3). Isolated yield: 1.85g, 75%. yield: 1.85g, 75%

1,2,4,5-Tetrakis(4-carboxyphenyl)benzene Preparation Products And Raw materials
