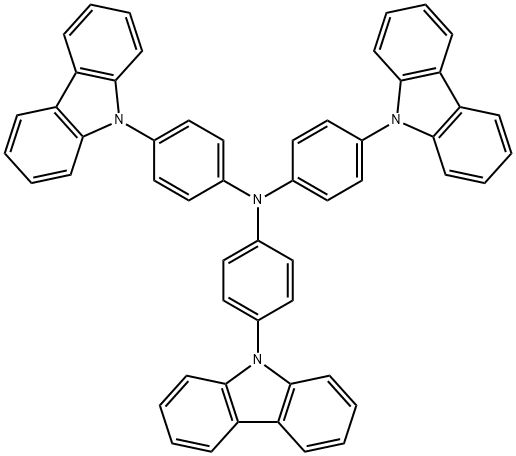

4,4',4''-Tris(carbazol-9-yl)-triphenylamine

CAS No.：139092-78-7

Important Notice

This product is a chemical product/pharmaceutical intermediate. It is not a drug, an active pharmaceutical ingredient (API), or a pharmaceutical-grade material. It has not been granted a drug approval number or a Chemical Drug Substance Approval Notice, has not passed drug-related review and approval, and is not manufactured, tested, or released in accordance with pharmaceutical GMP.
This product is intended solely for non-clinical research, process development, quality studies, further chemical processing, or chemical synthesis. It must not be used in drug-product manufacturing, clinical trials, clinical diagnosis, or administration to humans or animals, or be sold, used as an input, submitted for regulatory filing, or released as an API or pharmaceutical material.
The purchaser must not use this product, or supply it to another party, for personal consumption, sports or fitness, weight loss, health supplements, food, or animal feed.

View the full Disclaimer

Other grades of this product :

4,4',4''-Tris(carbazol-9-yl)-triphenylamine Basic information

Applications

Product Name:	4,4',4''-Tris(carbazol-9-yl)-triphenylamine
Synonyms:	4,4',4''-TRIS(CARBAZOL-9-YL)TRIPHENYLAMINE;TCATA;Tris[4-(carbazol-9-yl)phenyl]amine;TcTa;Tris(4-carbazoyl-9-ylphenyl)amine;4,4',4''-Tri-9-carbazolyltriphenylamine;TCTA,4,4',4''-Tris(carbazol-9-yl)-triphenylaMine;tris(4-(9H-carbazol-9-yl)phenyl)amine
CAS:	139092-78-7
MF:	C54H36N4
MW:	740.89
EINECS:	625-738-6
Product Categories:	OLED materials,pharm chemical,electronic;oled materials;electronic;Electronic Chemicals;White powder
Mol File:	139092-78-7.mol

4,4',4''-Tris(carbazol-9-yl)-triphenylamine Chemical Properties

Melting point	298~300°C
density	1.23±0.1 g/cm3(Predicted)
storage temp.	Inert atmosphere,Room Temperature
form	powder to crystal
pka	-5.97±0.60(Predicted)
color	White to Orange to Green
λmax	326nm(CH2Cl2)(lit.)
InChIKey	AWXGSYPUMWKTBR-UHFFFAOYSA-N
CAS DataBase Reference	139092-78-7
Odor	White powder/crystals
Absorption	λmax?293?and?326 nm (THF)

Safety Information

Hazard Codes	Xi
Risk Statements	36/37/38
Safety Statements	26-36/37-36
WGK Germany	3
HS Code	29339900

MSDS Information

4,4',4''-Tris(carbazol-9-yl)-triphenylamine Usage And Synthesis

Applications	Having three carbazole units as the pendants and triarylamine at the core, tris(4-carbazoyl-9-ylphenyl)amine (TCTA) is electron-rich. As a result, it is widely used as a hole-transport and hole-injection material in light-emitting diodes and perovskite solar cells. With low electron mobility, TCTA has also been used as exciton/electron blocking layer materials because of its high lying LUMO energy level (LUMO = 2.4 eV). TCTA is also a very popular phosphorescent host material due to its large band gap (Eg = 3.4 eV) for green, red and white phosphorescent organic light-emitting diodes (PhOLEDs).
Description	Having three carbazole units as the pendants and triarylamine at the core,?tris(4-carbazoyl-9-ylphenyl)amine (TCTA) is electron-rich. As a result, it is widely used as a hole-transport and hole-injection material in light-emitting diodes and perovskite solar cells. With low electron mobility, TCTA has also been used as exciton/electron blocking layer materials because of its high lying LUMO energy level (LUMO = 2.4 eV).
Chemical Properties	Light yellow solid
Uses	4,4'',4''''-Tris(carbazol-9-yl)-triphenylamine has been patented for use in the preparation of light-emitting materials for organic electroluminescent devices.

4,4',4''-Tris(carbazol-9-yl)-triphenylamine Preparation Products And Raw materials
