Other grades of this product :
| 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene Basic information |
| Product Name: | 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene | | Synonyms: | 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene;2,2',7,7'-Tetrakis(N,N-p-dimethoxyphenylamino)-9,9'- spirobifluorene;Spiro-OMeTAD;9,9'-Spirobi[9H-fluorene]-2,2',7,7'-tetraMine,N2,N2,N2',N2',N7,N7,N7',N7'-octakis(4-Methoxyphenyl)-;spiro-omet;2,2',7,7'-tetrakis(N,N-di-p-MethoxyphenylaMino)-9,9'-spirobifluorene;SPIRO-MEOTAD;N2,N2,N2',N2',N7,N7,N7',N7'-Octakis(4-Methoxyphenyl)- | | CAS: | 207739-72-8 | | MF: | C81H68N4O8 | | MW: | 1225.43 | | EINECS: | | Product Categories: | Amines;Aromatics;Fluorescent Labels & Indicators;OLED | | Mol File: | 207739-72-8.mol |
| 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene Chemical Properties |
| Melting point | 234-238°C | | density | 1.35±0.1 g/cm3(Predicted) | | storage temp. | Sealed in dry,Room Temperature | | solubility | Chloroform (Slightly) | | form | Solid | | pka | -1.22±0.20(Predicted) | | color | Tan to Pale Brown | | InChIKey | XDXWNHPWWKGTKO-UHFFFAOYSA-N | | Odor | White to pale yellow powder |
| Safety Statements | 24/25 | | WGK Germany | 3 | | HS Code | 29222990 |
| 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene Usage And Synthesis |
| Description | Spiro-OMeTAD (Spiro-MeOTAD) is one of the most studied and suitable hole transport layer materials (HTL) due to its facile implementation and high performance in organic-inorganic electronic devices. The spiro-linked molecule provides high glass transition temperature (Tg), morphological stability and easy processability while maintaining good electronic properties. Spiro-MeOTAD has been widely used in solid-state dye-sensitised solar cells (ssDSSC), organic light-emitting dioes (OLED), perovskite solar cells (PSCs) and polymer based organic solar cells (OSCs). | | Chemical Properties | 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene is Light Grey Solid
| | Uses | suzuki reaction | | Uses | Spirobifluorene derivatives are suitable for use as charge-transfer materials, for photovoltaic cells, also as electroluminescent materials. | | Uses | 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene is suitable for use as charge-transfer materials, especial for photovoltaic cells, and as electroluminescent materials.
| | General Description | SHT-263 Solarpur? is an organic spiro molecule that is used as a hole transporting material (HTM). Its properties include high stability, good solubility, and an amorphous structure. It is majorly used in the fabrication of high-performance solar cells. |
| 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene Preparation Products And Raw materials |
|

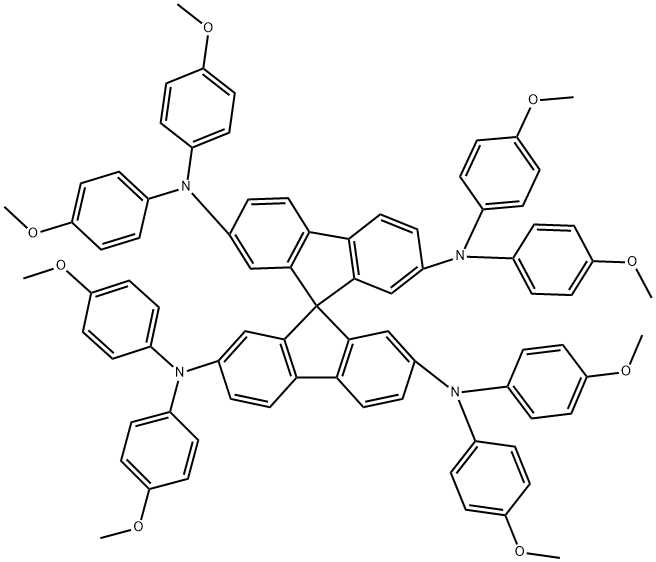

![2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene](/img/207739-72-8.jpg "2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene")
