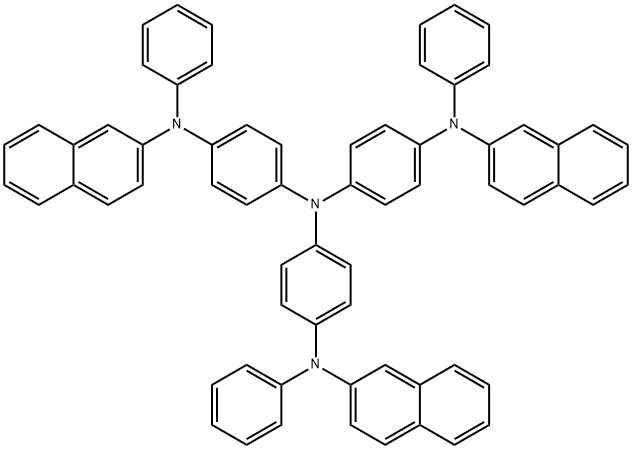

4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine

CAS No.：185690-41-9

Important Notice

This product is a chemical product/pharmaceutical intermediate. It is not a drug, an active pharmaceutical ingredient (API), or a pharmaceutical-grade material. It has not been granted a drug approval number or a Chemical Drug Substance Approval Notice, has not passed drug-related review and approval, and is not manufactured, tested, or released in accordance with pharmaceutical GMP.
This product is intended solely for non-clinical research, process development, quality studies, further chemical processing, or chemical synthesis. It must not be used in drug-product manufacturing, clinical trials, clinical diagnosis, or administration to humans or animals, or be sold, used as an input, submitted for regulatory filing, or released as an API or pharmaceutical material.
The purchaser must not use this product, or supply it to another party, for personal consumption, sports or fitness, weight loss, health supplements, food, or animal feed.

View the full Disclaimer

Other grades of this product :

4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine Basic information

Classification Applications

Product Name:	4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine
Synonyms:	2-TNATA,4,4',4''-Tris[2-naphthyl(phenyl)aMino]triphenylaMine;4,4',4"-Tris(N-(naphthalen-2-yl)-N-phenyl-aMino)triphenylaMin;4,4',4”-Tris(N-(aphthalene-2-yl)-N-phenylaMino)triphenylaMine;N1-(Naphthalen-2-yl)-N4,N4-bis(4-(naphthalen-2-yl-(phenyl)amino)phenyl)-N1-phenylbenzene-1,4-diam;N1-(Naphthalen-2-yl)-N4,N4-bis(4-(naphthalen-2-yl-(phenyl)amino)phenyl)-N1-phenylbenzene-1,4-d;4,4',4''-TRIS(N-(NAPHTHYLEN-2-YL)-N-PHENYLAMINO)TRIPHENYLAMINE;N1-(Naphthalen-2-yl)-N4,N4-bis(4-(naphthalen-2-yl(phenyl)aMino)phenyl)-N1-phenylbenzene-1,4-diaMine;4,4',4''-TRIS(N-(2-NAPHTHYL)-N-PHENYL-AMINO)-TRIPHENYLAMINE
CAS:	185690-41-9
MF:	C66H48N4
MW:	897.11
EINECS:	691-490-0
Product Categories:	OLED;electronic;Amines;Yellow crystalline powder;oled materials
Mol File:	185690-41-9.mol

4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine Chemical Properties

Melting point	242-246°C
density	1.252±0.06 g/cm3(Predicted)
storage temp.	Keep in dark place,Sealed in dry,Room Temperature
form	powder
pka	0.24±0.50(Predicted)
color	White to Yellow to Green
CAS DataBase Reference	185690-41-9(CAS DataBase Reference)
Absorption	λmax 326 nm (THF)

Safety Information

WGK Germany	3
HS Code	29214200

MSDS Information

4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine Usage And Synthesis

Classification	Triphenylamine derivatives, Hole-injection materials, Hole-transporting materials, Light-emitting diodes.
Applications	4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine (2-TNATA), a starburst type molecule, gives very homogeneous thin-films that are ideal as hole-injection layers due to its low ionisation potential (of around 5.1 eV. It has been demonstrated that p-i-n organic light-emitting diodes (OLEDs) incorporating a p-doped transport layer that comprises tungsten oxide (WO3) and 2-TNATA significantly improves hole injection and conductivity of the Alq3 based p-i-n OLEDs with long lifetime, low driving voltage (3.1 V), and high power efficiency (3.5 lm/W) at 100 cd/m2.
Description	4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine (2-TNATA), a starburst type molecule, gives very homogeneous thin-films that are ideal as hole-injection?layers due to its low ionisation potential (of around 5.1 eV ).
Uses	N1-(naphthalen-2-yl)-N4,N4-bis(4-(naphthalen-2-yl(phenyl)amino)phenyl)-N1-phenylbenzene-1,4-diamine (CAS# 185690-41-9) is a blue light emitter and is used in organic light-emitting diodes (OLEDs).
Uses	This material is a very popular hole transport material used in high performance; high-efficiency OLED devices. Colors include white light and deep blue with much more efficient lifetimes (resulting efficiency was 6.0 lm/W (12.4 cd/A) at 20 mA/cm2).
Uses	It is a famous hole transport material which could be utilized for high performance and high-efficiency OLED devices. Colors contain white light and deep blue，meanwhile the lifetimes are much more efficient (resulting efficiency was 6.0 lm/W (12.4 cd/A) a

4,4',4''-Tris[2-naphthyl(phenyl)amino]triphenylamine Preparation Products And Raw materials
