Other grades of this product :

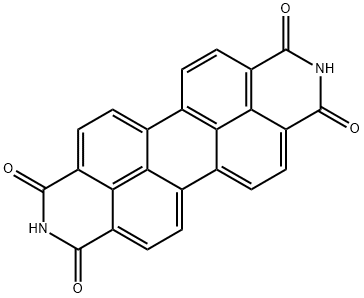

| 3,4,9,10-Perylenetetracarboxylic diimide Basic information |
| Product Name: | 3,4,9,10-Perylenetetracarboxylic diimide | | Synonyms: | PERYLENETETRACARBOXYLIC ACID DIIMIDE;Anthra[2,1,9-def:6,5,10-d’e’f’]diisoquinoline-1,3,8,10(2H,9H)-tetrone;perylene-3,4:9,10-tetracarboxydiimide;Pigment Violet 29;Perylene-3,4,9,10-Tetracarboxylic Acid Diimide;perylenediimide;9,10-tetracarboxydiimide;Pigment violet 29 (C.I. 71129) | | CAS: | 81-33-4 | | MF: | C24H10N2O4 | | MW: | 390.35 | | EINECS: | 201-344-6 | | Product Categories: | OLED;OTFT/OFET/OPV Materials;Fluorenes, etc. (reagent for high-performance polymer research);Functional Materials;Reagent for High-Performance Polymer Research;Reagents for Conducting Polymer Research;Intermediates of Dyes and Pigments;Organics;Acid Anhydrides, etc. (Reagents for Conducting Polymer Research);Electroluminescence | | Mol File: | 81-33-4.mol |
| 3,4,9,10-Perylenetetracarboxylic diimide Chemical Properties |
| Safety Statements | 22-24/25 | | TSCA | Yes | | HS Code | 29337900 |
| Provider | Language |
|
ALFA
| English |
| 3,4,9,10-Perylenetetracarboxylic diimide Usage And Synthesis |
| Chemical Properties | Dark yellow red to black solid | | Uses | Used in chemical research. PTCDI is used extensively as an industrial pigment. It is used as tunable laser dye, light-harvesting material, transistor, molecular switched, solar cell, and optoelectronic device. Planar perylene- and naphthalene-based diimide linkers can be employed to tether the Watson- Crick and the Hoogsteen strands of a DNA triplex, thus providing conjugates capable of targeting singlestranded nucleic acids with the formation of hairpin triplexes. | | Definition | ChEBI: The 3,4,9,10-tetracarboxylic diimide derivative of perylene. | | Flammability and Explosibility | Notclassified | | Properties and Applications |
|
TEST ITEMS
|
SPECIFICATION
|
|
APPEARANCE
|
VIOLET POWDER
|
|
SHADE
|
REDDISH
|
|
HEAT RESISTANCE
|
300 °C min
|
|
LIGHT FASTNESS
|
8
|
|
ACID RESISTANCE
|
5
|
|
ALKALI RESISTANCE
|
5
|
|
FASTNESS TO BLEEDING
|
5
|
|
OIL ABSORPTION
|
40-45%
|
|
SPECIFIC SURFACE
|
28 m
2
/g
|
|
DENSITY
|
1.60 g/cm
3
|
|
RESIDUE ON 80 MESH
|
5.0% max
|
|
WATER SOLUBLE
|
1.0% max
|
|
VOLATITE 105 °C
|
1.0% max
|
|
TINTING STRENGTH
|
100-105 %
|
|
| 3,4,9,10-Perylenetetracarboxylic diimide Preparation Products And Raw materials |
|
